Vertical Foam Cutter

About Vertical Foam Cutter

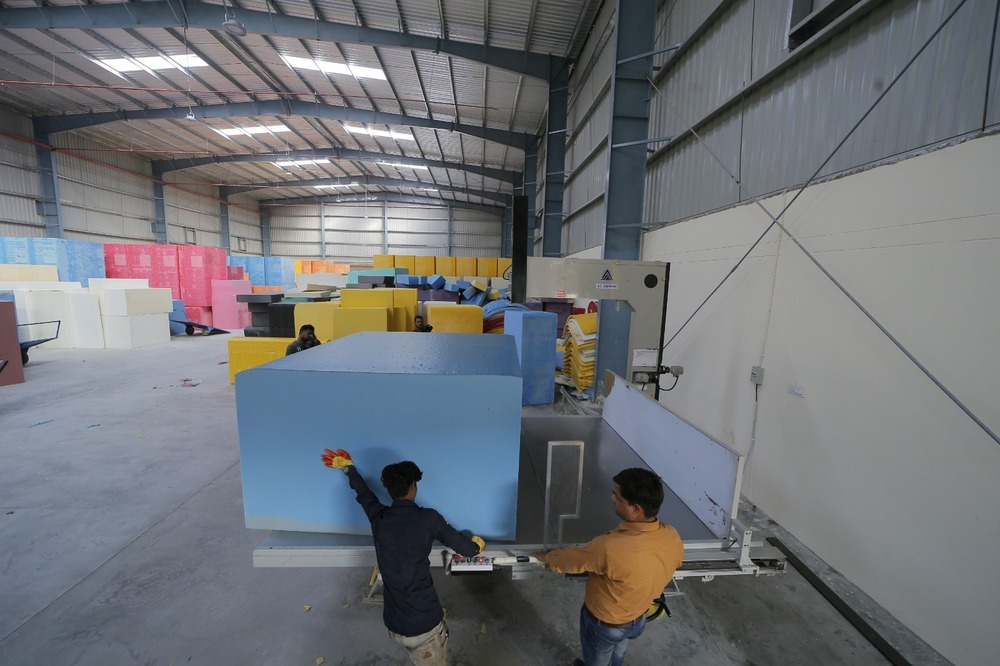

Vertical Foam Cutter Machine is very crucial when it comes to cut down large blocks of foam into the required shape and size. It is basically brought in use to trim off the slides of polyurethane blocks. This cutting machine comprises of an electrically managed or controlled blade motor along with a modifiable side support system. The total power consumed is 1.74KW. The dimensions of the product is measured and noted to be 4000*3500*2500mm and the out worktable size is accounted to be L1200*W2290mm having the inner worktable size of approximately L1320*W2290 mm. Vertical Foam Cutter offers the cutting height that ranges from 800mm to 1200mm. The cutting blade length is noted to fall in between L8100 to L8900mm. Vertical Foam Cutter Technical Details: 1) The traveling track of the machine is T75 lift(elevator) rail and the total power is 1.74kw. 2) It is used vastly in the applications like small sponge, EVA, EPE, packing materials,paper etc. 3) The specifications of the machine are L4000*W3500*H2500mm and weight is 1200KG, 1200KG. 4) The processing type is Foaming Machine and the voltage required is 380/220V.

FAQs of Vertical Foam Cutter:

Q: What type of control system does the Vertical Foam Cutter use?

A: The Vertical Foam Cutter uses a PLC Control system.

Q: Is the Vertical Foam Cutter fully automatic?

A: No, the cutting function of the Vertical Foam Cutter is semi-automatic.

Q: What material is the Vertical Foam Cutter made of?

A: The Vertical Foam Cutter is made of mild steel.

Q: What is the voltage requirement for the Vertical Foam Cutter?

A: The voltage requirement for the Vertical Foam Cutter is 380/220 Volts.

Q: How long is the warranty period for the Vertical Foam Cutter?

A: The warranty period for the Vertical Foam Cutter is 1 year.
